Masamod® Frame | Shoring Scaffold

Masamod® | Frame
Shoring Scaffolding Systems


Masamod is generally used as a heavy load formwork shoring system in construction of high-storey buildings and high slab thickness values. Thanks to its frame design and horizontal and diagonal support members, the system provides a fairly rigid structure.

System Features:
» Frame vertical members of the system are built of Ø60x3 mmor Ø60x4 mm tubes depending on the project, while Ø48x3mm tubes are used for frame horizontal members.
» Other horizontal and diagonal members of the system are built of Ø34x2.5 mm or Ø38x2.5 mm tubes depending on the project.
» The whole system is TSE certified and built of tubes with mechanical conformity tests.

Material Properties:
» All scaffolding components are built of industrial tubes that are made of Fe37structural steel conforming to the DIN 2394, TS EN 10305-3 and TS EN 10219-1/2 standards (yield strength 235 MPa).



Material cross-sectional values Frame Vertical Bearer
Outer Diameter D (mm)" 60.3
Wall Thickness t (mm) 3
Cross-Sectional Area A (cm2) 5.4
Unit Weight G (kg/m) 4.24
Moment of Inertia I (cm4) 22.22
Elasticity Strength Mom. Wel (cm3) 7.37
Radius of Inertia ix (cm) 2.03
Plastic Strength Mom. Wpl (cm3) 9.86


Load Bearing Capacity of “110 cm Frame” props is 62 kN.
Load Bearing Capacity of “150 cm Frame” props is 55 kN.
Load Bearing Capacity of “180 cm Frame” props is 49 kN.

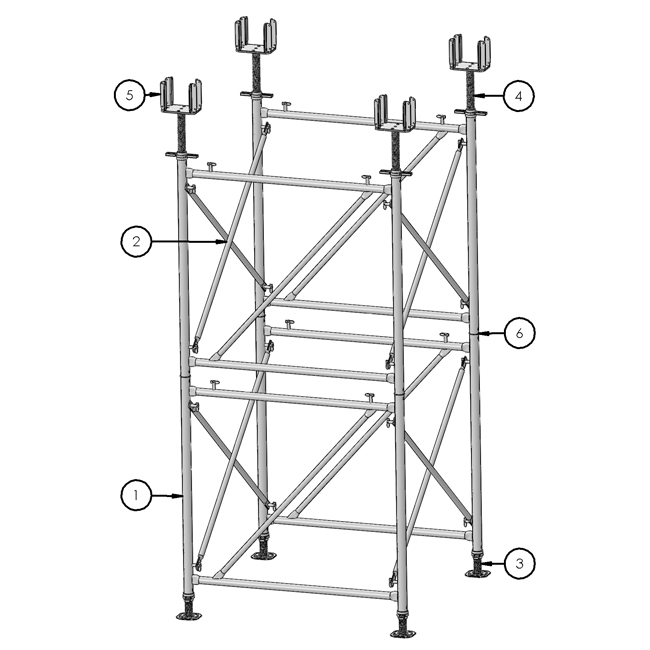

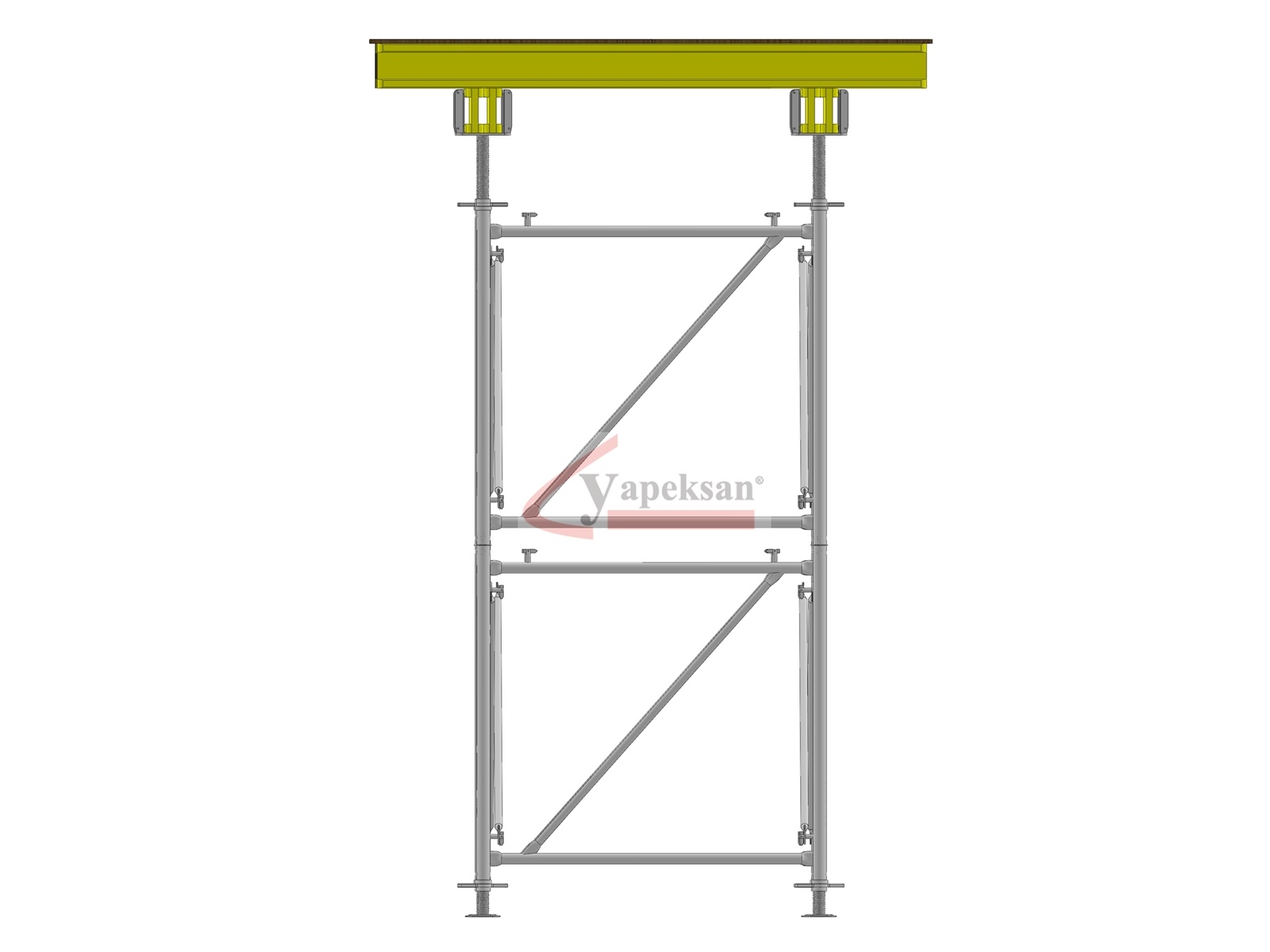

System Components Masamod Shoring System Module

1 - Steel H Frame
2 - Diagonal Connecting Bar
3 - Lower Adjustment Rod
4 - Upper Adjustment Rod
5 - Four-Way Cap
6 - Steel Fastener
